Features

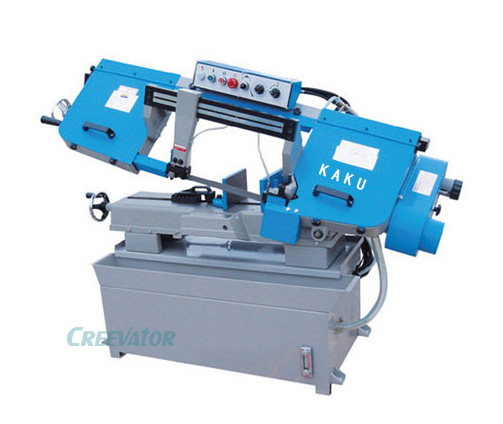

The maximum processing capability of BAND SAW BS-916 is 9"(229mm).
High-capacity due to controlled by motor.
Can rotate from 0° to 45°.
has the advantage of quickly clamping.
Features a belt driven and has four cutting speed.
The falling speed of saw bow is controlled by hydraulic cylinder.
With a sizing device, machine will stop automatically after sawing materials.
With power break protection device, machine will power off automatically when the rear protective cover is opened.
With coolant system, can prolong the service life of saw blade and improve the precision of work piece.
has a block feeder (with fixed sawing length).
Specifications
Model | BS-916VR | |
Capacity | Circular @90° | 229mm(9”) |
Rectangular @90° | 127x406mm(5”x16”) | |
Circular @45° | 150mm(6”) | |
Rectangular @45° | 150x190mm(6”x7.5”) | |
Blade Speed | @60Hz | 35,60,88,115MPM |
@50Hz | 26,50,73,95MPM | |
Blade Size | 27X0.9X3090mm | |
Motor Power | 1.5kw | |
Drive | V-belt | |
Packing Size | 176x83x115cm | |
N.W./G.W. | 280/340kg | |
